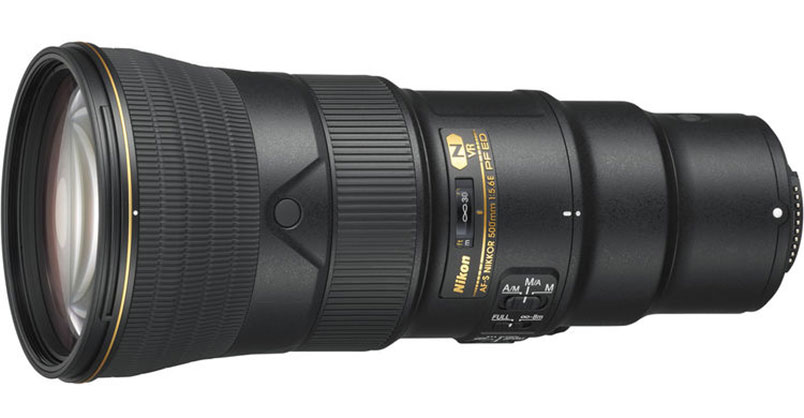

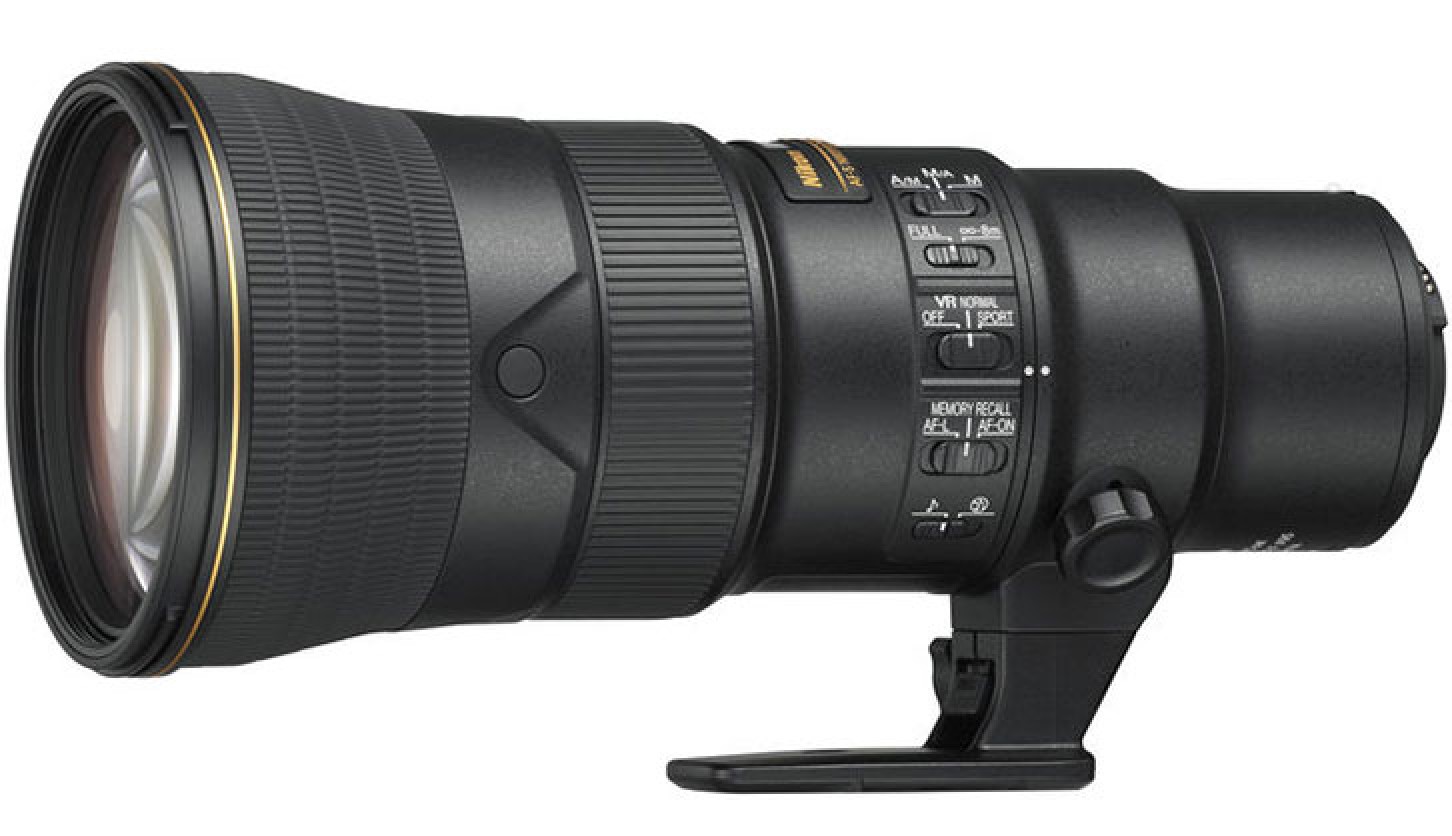

Nikon AF-S NIKKOR 500mm f/5.6E PF ED VR

F-Mount Lens/FX Format

Aperture Range: f/5.6 to f/32

One Phase Fresnel Element

Three Extra-Low Dispersion Elements

Nano Crystal & Super Integrated Coatings

Fluorine-Coated Front Lens Element

Silent Wave Motor AF System

Vibration Reduction, Sport/Tripod Modes

Electromagnetic Diaphragm Mechanism

Detachable, Rotatable Tripod Collar

Contrary to popular belief, a super telephoto does not have to be a massive lens, proven here with the Nikon AF-S NIKKOR 500mm f/5.6E PF ED VR. Taking exceptionally long reach and giving it a hand-holdable form factor, this 500mm prime utilizes a unique Phase Fresnel element to greatly reduce the size and weight compared to previous versions of the focal length. This PF element, along with three extra-low dispersion elements, also helps to virtually eliminate color fringing and chromatic aberrations in order to achieve a high degree of clarity, sharpness, and color fidelity. Complementing this advanced optical design, individual elements also feature both Nano Crystal and Super Integrated Coatings to suppress flare and ghosting, as well as a protective fluorine coating to guard the optical system from dust and moisture.

Benefitting the optical design, this telephoto features a Silent Wave Motor AF system that produces fast, near-silent focusing performance to suit both stills shooting and movie recording, and which can instantly be manually overridden by simply turning the focus ring. Further contributing to photographing in fast-paced situations and difficult lighting, VR (Vibration Reduction) image stabilization compensates for the effects of camera shake for sharper handheld shooting. Additionally, an electromagnetic aperture mechanism is integrated into the lens design to provide greater exposure control stability that is especially beneficial when working with faster continuous shooting rates.

Super telephoto designed for use with FX-format Nikon F-mount cameras, this lens is also compatible with DX models where it will provide a 750mm equivalent focal length.

One Phase Fresnel element and three extra-low dispersion lens elements work to greatly reduce chromatic aberrations and color fringing; improve overall image sharpness, clarity, and color fidelity; and help to minimize the overall weight of the lens.

A Nano Crystal Coat, along with a Super Integrated Coating, has been applied to lens elements to minimize surface and internal reflections for a marked reduction in lens flare and ghosting.

Vibration Reduction image stabilization helps to reduce the appearance of camera shake by four stops, benefiting this lens's use in low-light conditions. Additionally, a designated Sport Mode is well-suited to working in fast-paced conditions and a Tripod Mode helps to suppress subtle ground vibrations when working atop a support system.

Silent Wave Motor affords quick, quiet, and precise autofocus performance along with full-time manual focus override. An internal focusing design is also used, where only the internal lens groups are moved during focusing, to maintain the overall length of the lens during use and to promote faster focusing speeds.

Fluorine-coated front element affords protection to the optical system.

Dust- and moisture-resistant magnesium-alloy lens barrel benefits the lens' use in inclement conditions.

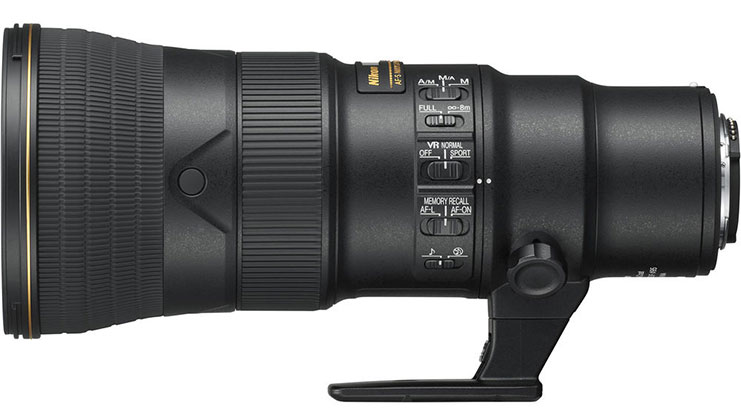

A removable tripod collar is included with the lens for well-balanced support when working from a monopod or tripod.

Specialized electromagnetic aperture mechanism provides greater exposure control stability that is especially beneficial when working with fast continuous shooting rates.

This mechanism limits the compatibility of this lens to the following cameras: D5, D4, D3 series, Df, D850, D810, D810A, D800/E, D750, D700, D610, D600, D500, D300/S, D7500, D7200, D7100, D7000, D5600, D5500, D5300, D5200, D5100, D5000, D3400, D3300, D3200, D3100, Nikon Z7/Z6 with FTZ, Nikon 1 J1, J2, J3, J4 with FT-1, Nikon 1 V1, V2, V3 with FT-1, and Nikon 1 S1, S2 with FT-1.

Compatible with optional AF-S Teleconverter TC-14, TC-17, and TC-20 teleconverters.

• Nikon 500mm F/5.6 Specs
• Performance
• Focal Length ... 500mm
• Aperture ... Maximum: f/5.6
• Minimum: f/32
• Camera Mount Type ... Nikon F
• Format Compatibility ... Nikon FX/35mm Film
• Angle of View ... 5°
• Minimum Focus Distance ... 9.84' / 3 m
• Magnification ... 0.18x
• Maximum Reproduction Ratio ... 1:5.5
• Optical Design ... 19 Elements in 11 Groups
• Diaphragm Blades ... 9, Rounded
• Features
• Image Stabilization ... Yes
• Autofocus ... Yes
• Tripod Collar ... Yes Removable - rotating
• Physical
• Filter Thread ... Front: 95 mm
• Dimensions (DxL) ... 4.17 x 9.33" / 106 x 237 mm
• Weight ... 3.21 lb / 1460 g
• Packaging Info
• Package Weight ... 4.75 lb
• Box Dimensions (LxWxH) ... 13.3 x 5.3 x 2.6"
