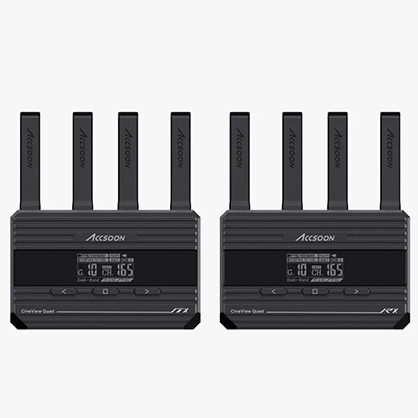

Accsoon CineView Quad Wireless Transmission System

Accsoon CineView Quad is a SDI&HDMI Dual-Band (2.4GHz & 5GHz) wireless camera video transmitter and receiver system featuring a unique foldable antenna design.

It transmits and receives HD video and HQ audio through Accsoon's uniquely patent Dual-Band transmission technology. With Dual-Band transmission technology, CineView Quad can stream data over 150m(500ft) with near-zero latency.

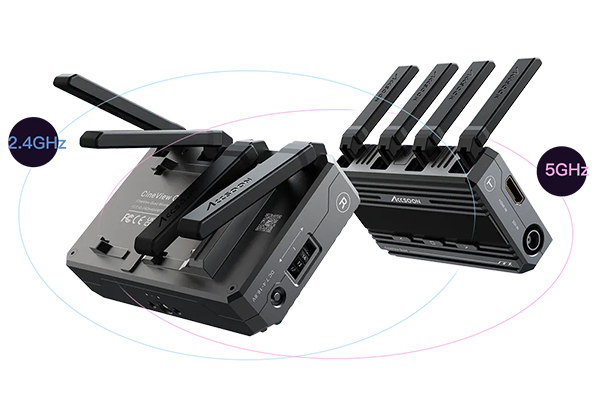

2.4GHz+5GHz Dual-Band Transmission

To achieve the most minor interference and best reliability

Accsoon CineView Quad is equipped with Accsoon's patented Dual-Band transmission technology, allowing it to stream the signal via 2.4GHz and 5GHz WiFi simultaneously. Then the receiver can intelligently identify interference and combine the two streams to form the complete audio and video stream significantly improving its stability and anti-interference ability. With Dual-Band transmission, CineView Quad is far more stable than traditional WiFi video transmitters that only stream in 5GHz. Once on set, CineView Quad will provide you with a stable and glitch-free stream, handling even the most challenging environment with ease.

Extremely Low Latency Less Than 60ms

Improve your shooting productivity on set

With an average latency of under 60ms - CineView Quad has nearly undetectable lag while maintaining a high-quality image via its wireless solid signal.

Transmission Ranges Up to 500 feet/150m

Reduced interference, hassle-free transmission, and longer distance

By introducing Dual-Band transmission technology which reduces negative interference, CineView Quad can easily reach transmission range of up to 500ft line-of-sight. It can be over a thousand feet away and still give you complete control over the situation.

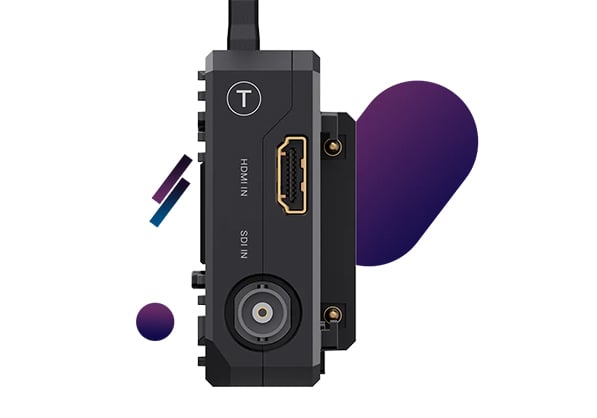

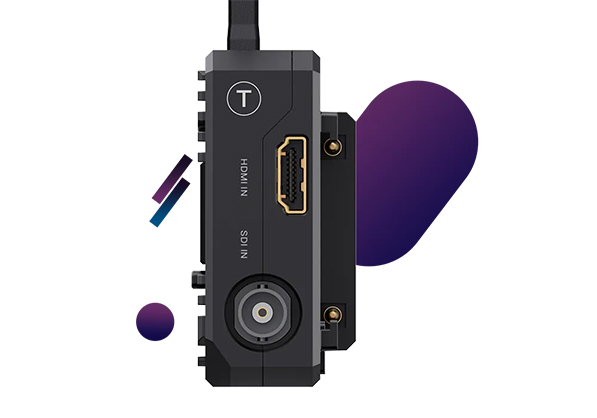

SDI & HDMI In and Out

Double your video input and output options

With CineView Quad, you can plug up to 4 receivers into anything with an HDMI/SDI input: professional monitors, HD televisions and projectors.

Monitoring on Up to 4 Devices, Mix and Match

You already have the monitors. Now have more

CineView Quad transmits a WiFi signal directly to dedicated receivers and allows for a video signal to be sent to iOS or Android devices.

FHD Video and High-Quality Audio Transmission

A real-time feast for your eyes and ears

CineView Quad supports video input of up to 1080p 60fps and audio input of 44.1KHz/48KHz 16bit/24bit. The transmitter alters the bitrate and video quality of the outgoing signal to maximize connection and framerate to make sure you can always monitor what is happening.

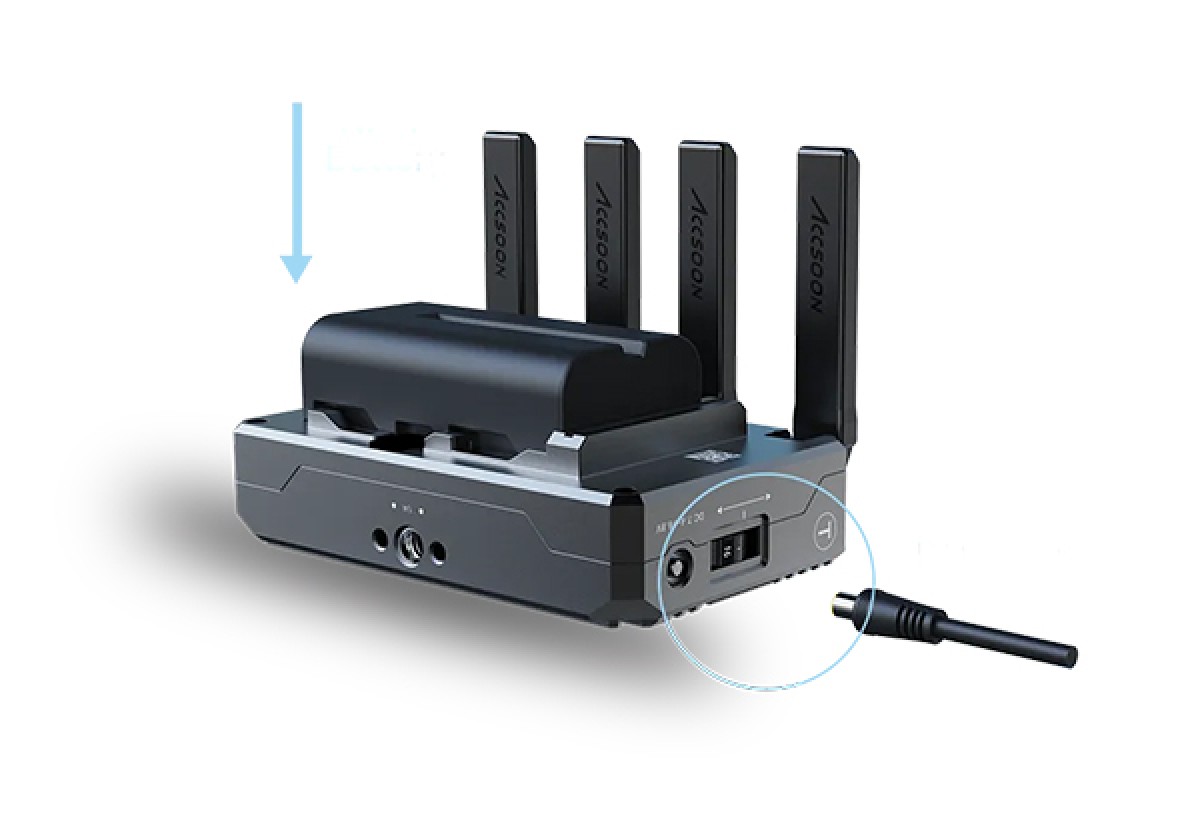

Power Supply With NP-F Series Battery and DC Input

Charge the way you like

You can now supply CineView Quad with power from any NP-F battery. Keep extra batteries on hand for all-day shooting or plug CineView Quad into ground power via the built-in DC input on both the transmitter and receiver. Now, you can send beautiful HD videos to your monitors for as long as the shoot requires.

Pro Features Monitoring App Accsoon Go

Pro control in the palm of your hand

Already boasting features such as focus peaking, zebras, false colours for exposure, and LUT overlay that Accsoon users have come to love. Minimize crew movement and noise while maintaining control from a distance.

Live-streaming

RTMP streaming & remote monitoring from anywhere

Split Screen (only for iPad)

Monitor, record (with LUT), edit or view the script

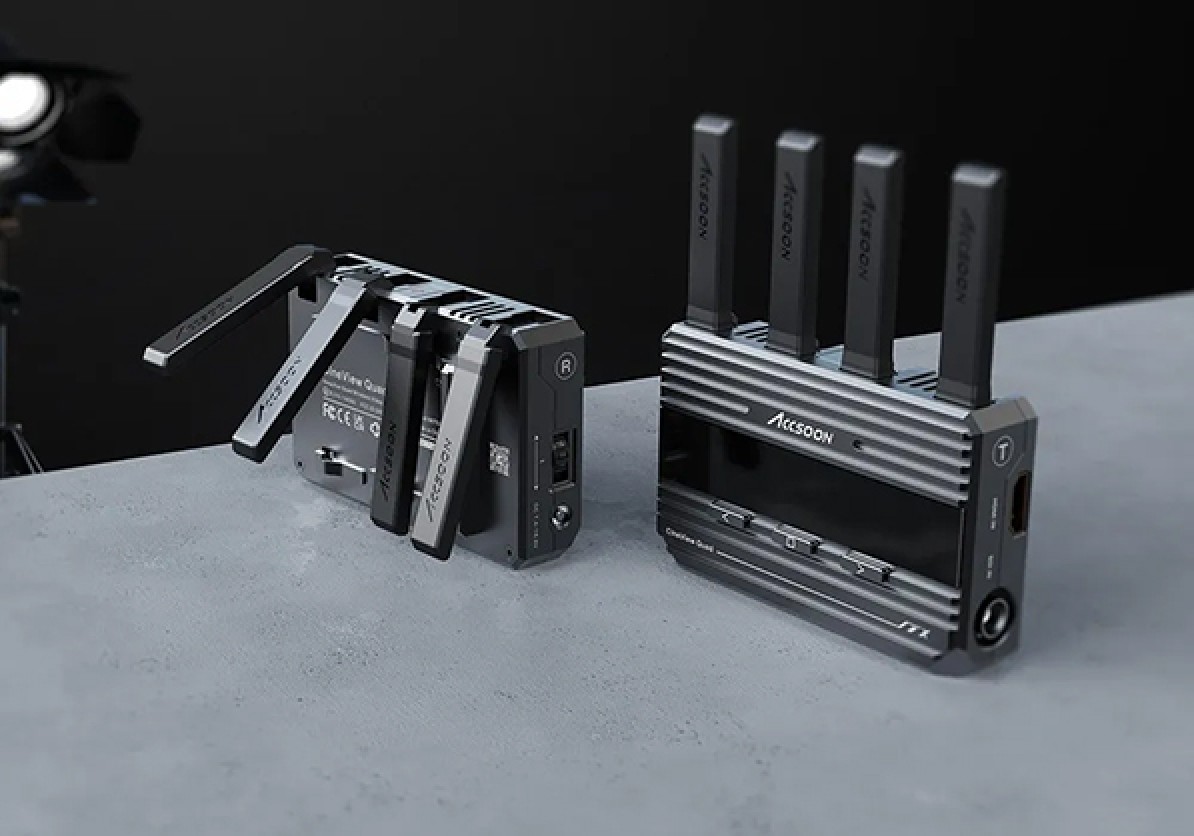

Quick and Easy Set-Up

Foldable antennas that are easy to take with and space-saving

CineView Quad is compact and lightweight for immediate use. Just unfold the antennas, mount, and start shooting. With its high-end features and budget price - the Accsoon CineView Quad will be an essential part of any videographer's kit.

Noise-Free Fanless Design

Be quiet and stay quiet

Replace your noisy wireless transmission system with a virtually silent alternative. CineView Quad's fanless design is perfect for indoor noise-free or narrow-sized shooting applications.

Easy TX/RX Group Pairing

It has never been easier

CineView Quad has a group setting knob on each transmitter and receiver. Turn the knobs to the same number, and voila! Pairing is done, and you're ready to shoot.

Aerospace Grade Aluminum Alloy

High strength and excellent ductility

CineView Quad is just 31mm thin, 225g and rounded aerospace-grade aluminium alloy frame which is light, firm & corrosion resistant.

• Projects ... Transmitter
• Video Input ... SDI/HDMI
• SDI Input Format ... 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
• HDMI Input Format ... 1080p 23.98/24/25/29.97/30/50/59.94/60fps
• DC Port ... 5.5mmx2.1mm center positive
• DC Voltage ... 7.4~16.8V
• Audio ... 44.1KHz/48KHz 16bit/24bit PCM
• Latency
